EREX STANDARD END
Technical information
− Easy to install
− High mechanical resistance
− Profile designed for ground stability (earth fills the inside of the post once installed )
− Galvanisation Z 275gr/m²
− Available in 2,00mm
− Installation advice :
• 5m distance between posts, install 30% of the post in the ground
• Make a pilot hole in difficult ground before installing the post
Specifications
THICKNESS 2,00 mm

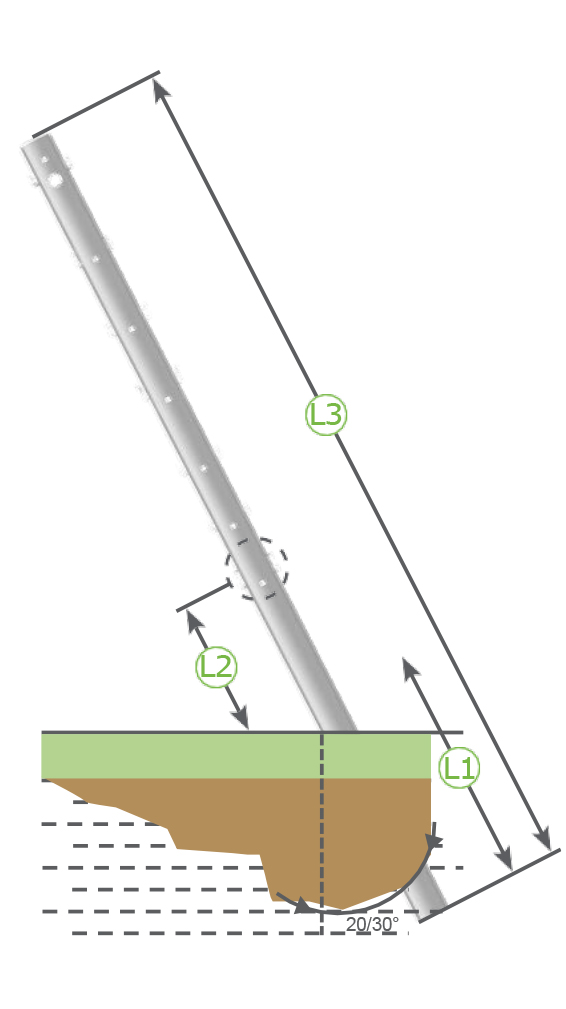

| Kg/u (cm) |
L3 | L2 | L1 |
| 3,55 kg | 180 | 35 | 54/64 |
| 3,94 kg | 200 | 45 | 60/66 |
| 4,33kg | 220 | 35 | 66/76 |
| 4,73 kg | 240 | 45 | 72/82 |
 |
 |
Fixed wire area
Fruiting/moving wire area
Fixed wire area
